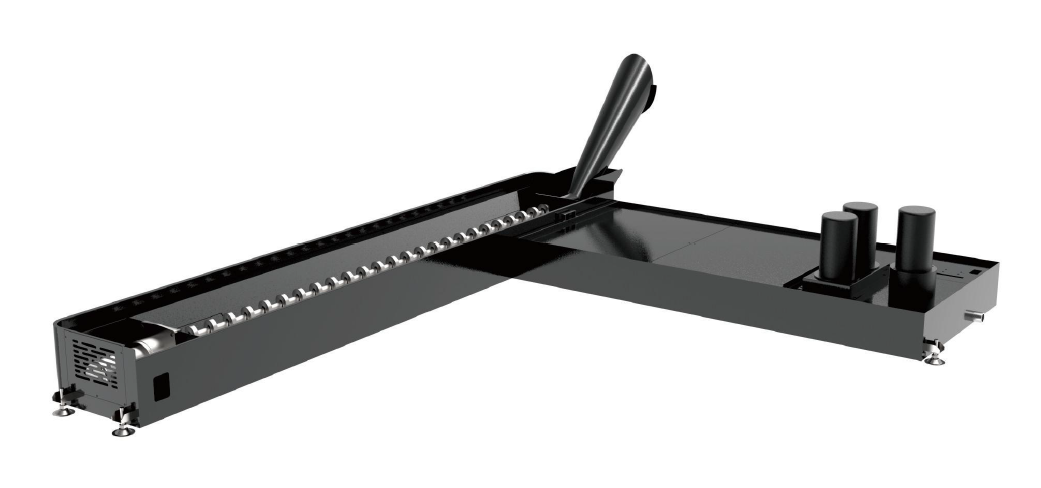

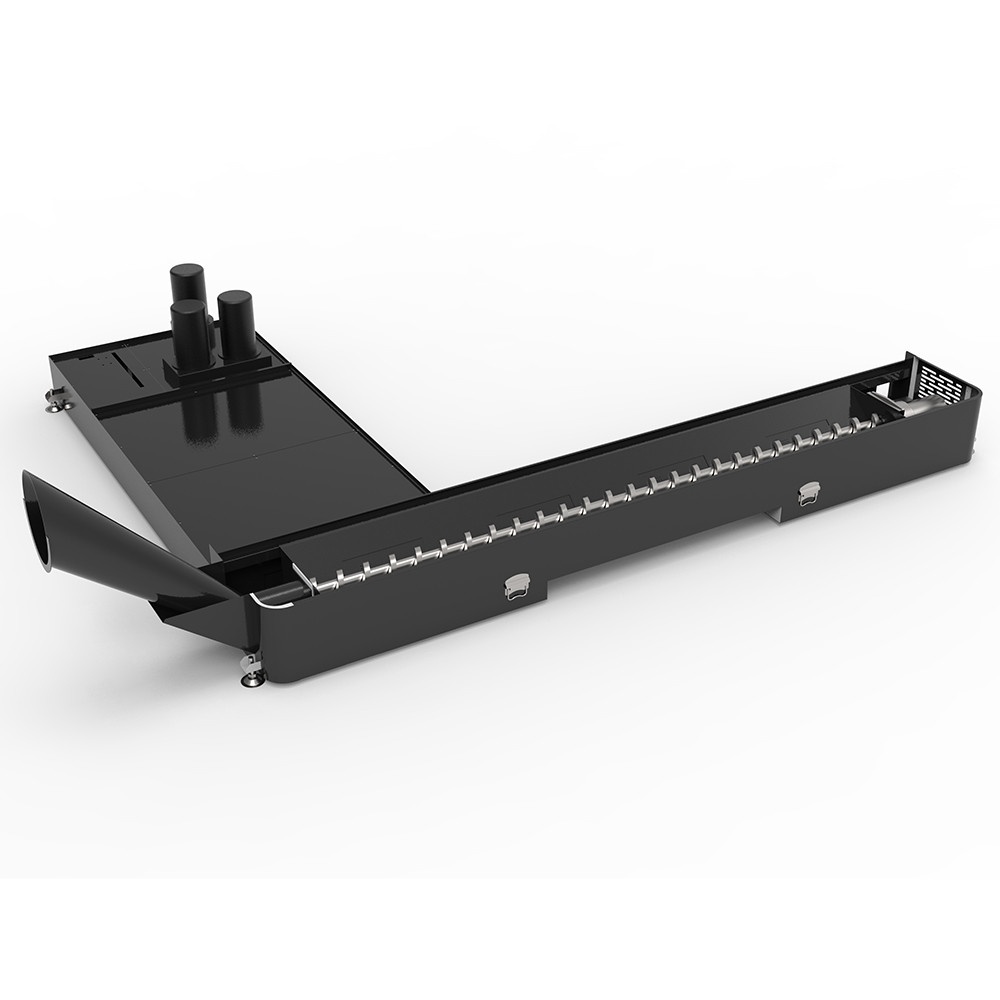

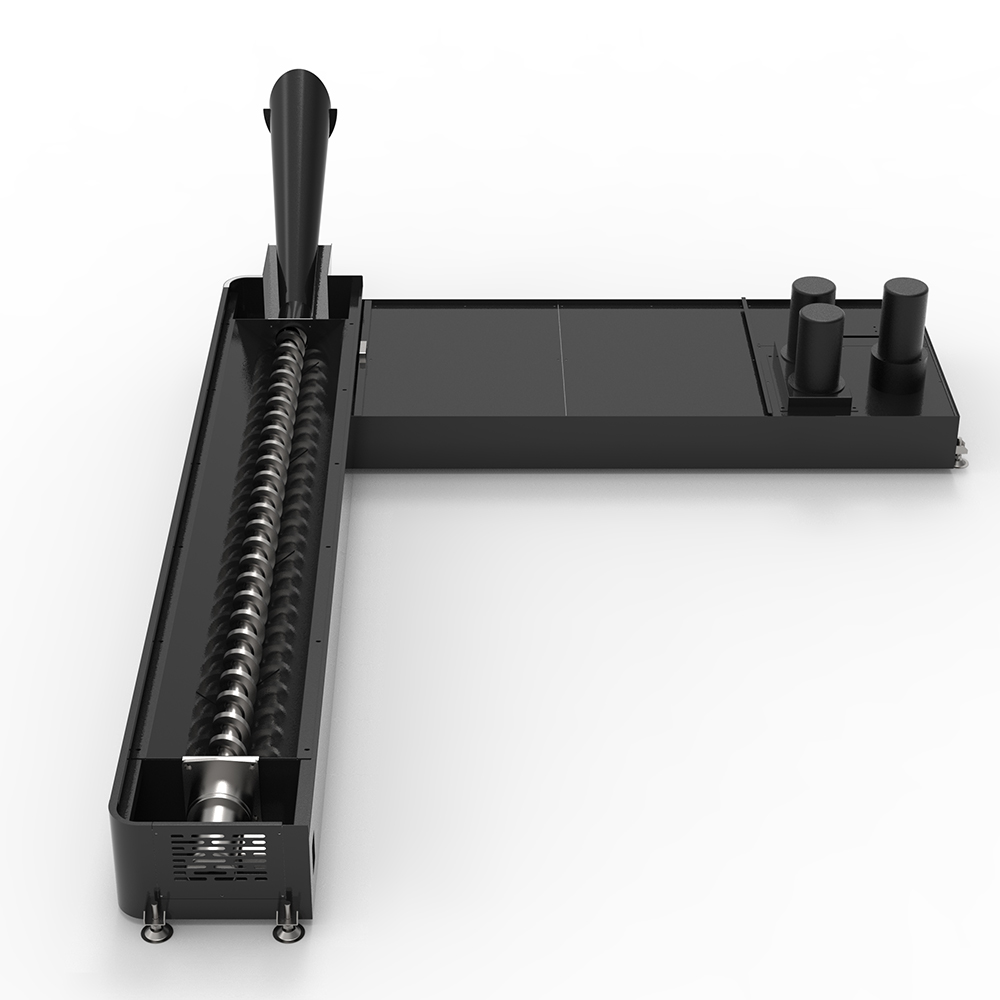

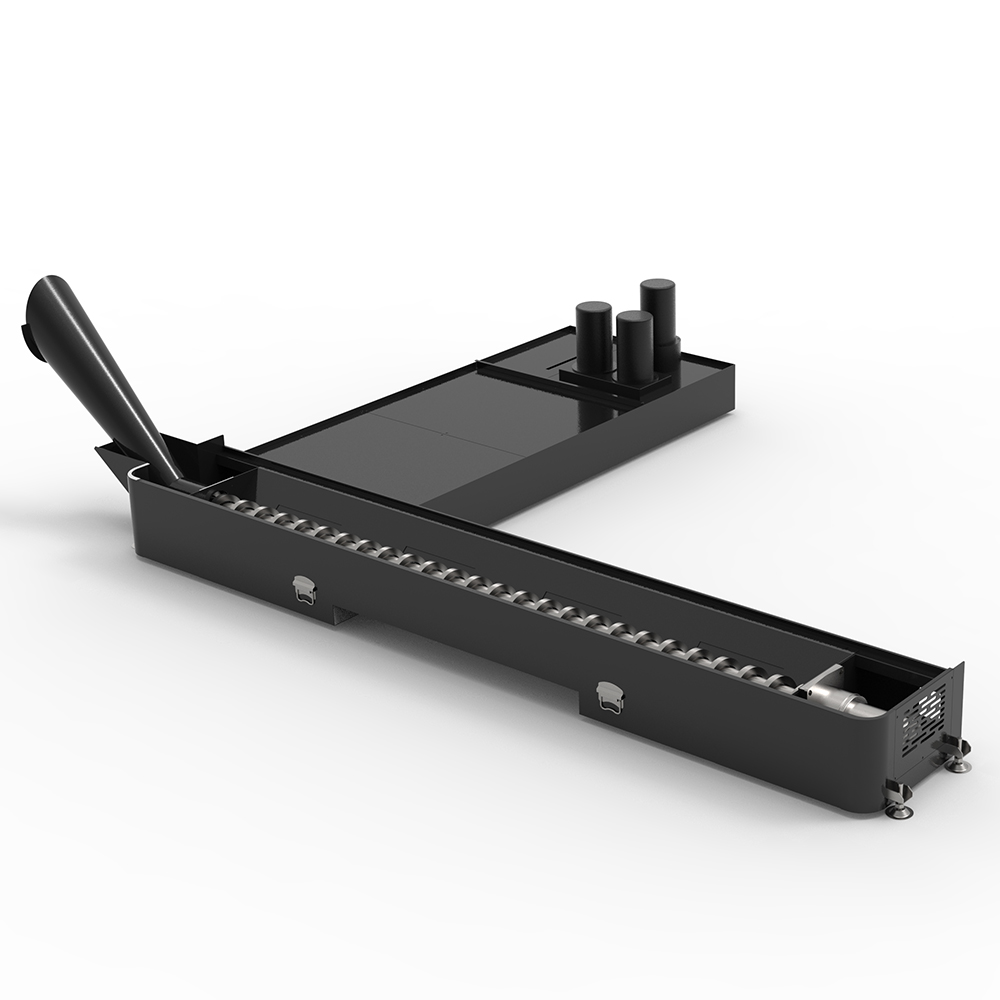

AK-LX系列螺旋排屑机

AK-LX系列螺旋排屑机适用于有限空间的应用工况,螺旋输送机安装使用方便,故障率低。针对粉状、颗粒状或长度小于100mm的切屑有着良好的输送效果。

产品详情产品参数产品动画其他型号

AK-LX系列 螺旋排屑机

AK-LX Auger Chip Conveyor

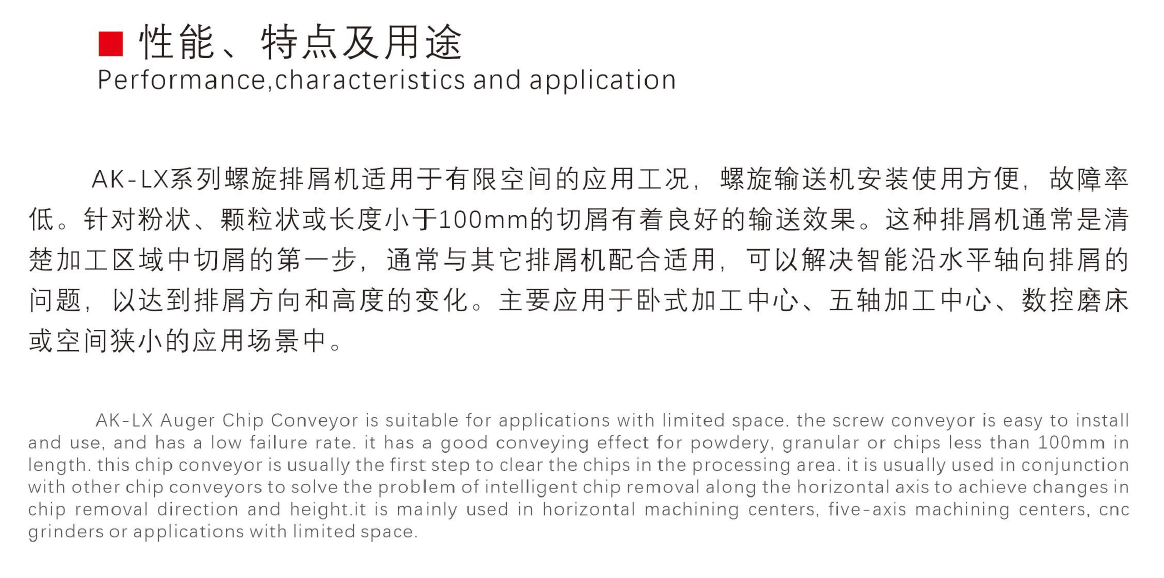

一、性能、特点及用途--Performance,characteristics and application

         AK-LX系列螺旋排屑机适用于有限空间的应用工况,螺旋输送机安装使用方便,故障率低。针对粉状、颗粒状或长度小于100mm的切屑有着良好的输送效果。这种排屑机通常是清楚加工区域中切屑的第一步,通常与其它排屑机配合适用,可以解决智能沿水平轴向排屑的问题,以达到排屑方向和高度的变化。主要应用于卧式加工中心、五轴加工中心、数控磨床或空间狭小的应用场景中。

         AK-LX Auger Chip Conveyor is suitable for applications with limited space. the screw conveyor is easy to install and use, and has a low failure rate. it has a good conveying effect for powdery, granular or chips less than 100mm in length. this chip conveyor is usually the first step to clear the chips in the processing area. it is usually used in conjunction with other chip conveyors to solve the problem of intelligent chip removal along the horizontal axis to achieve changes in chip removal direction and height.it is mainly used in horizontal machining centers, five-axis machining centers, cnc grinders or applications with limited space.

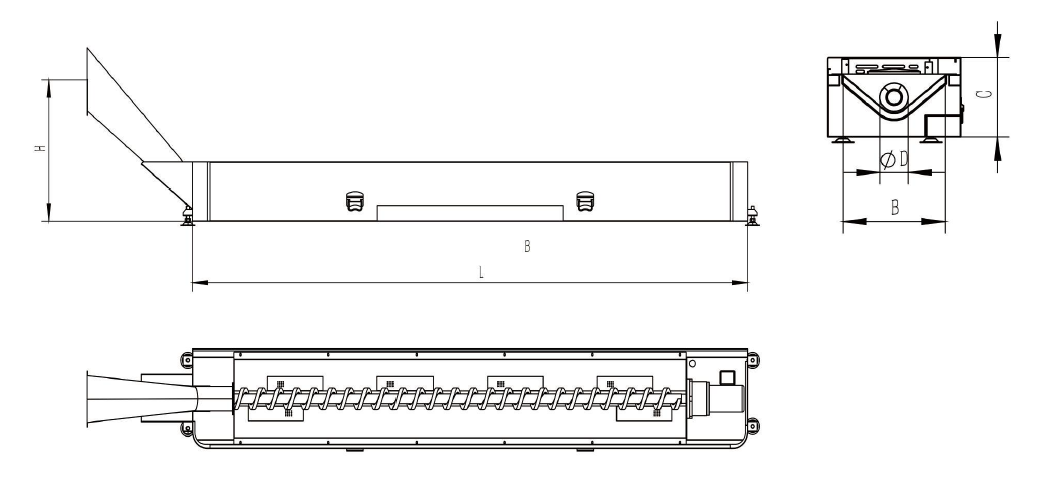

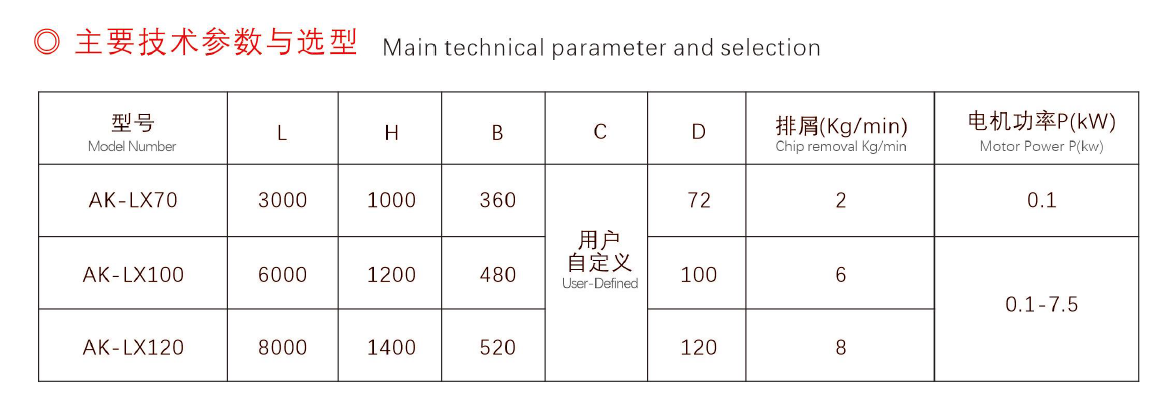

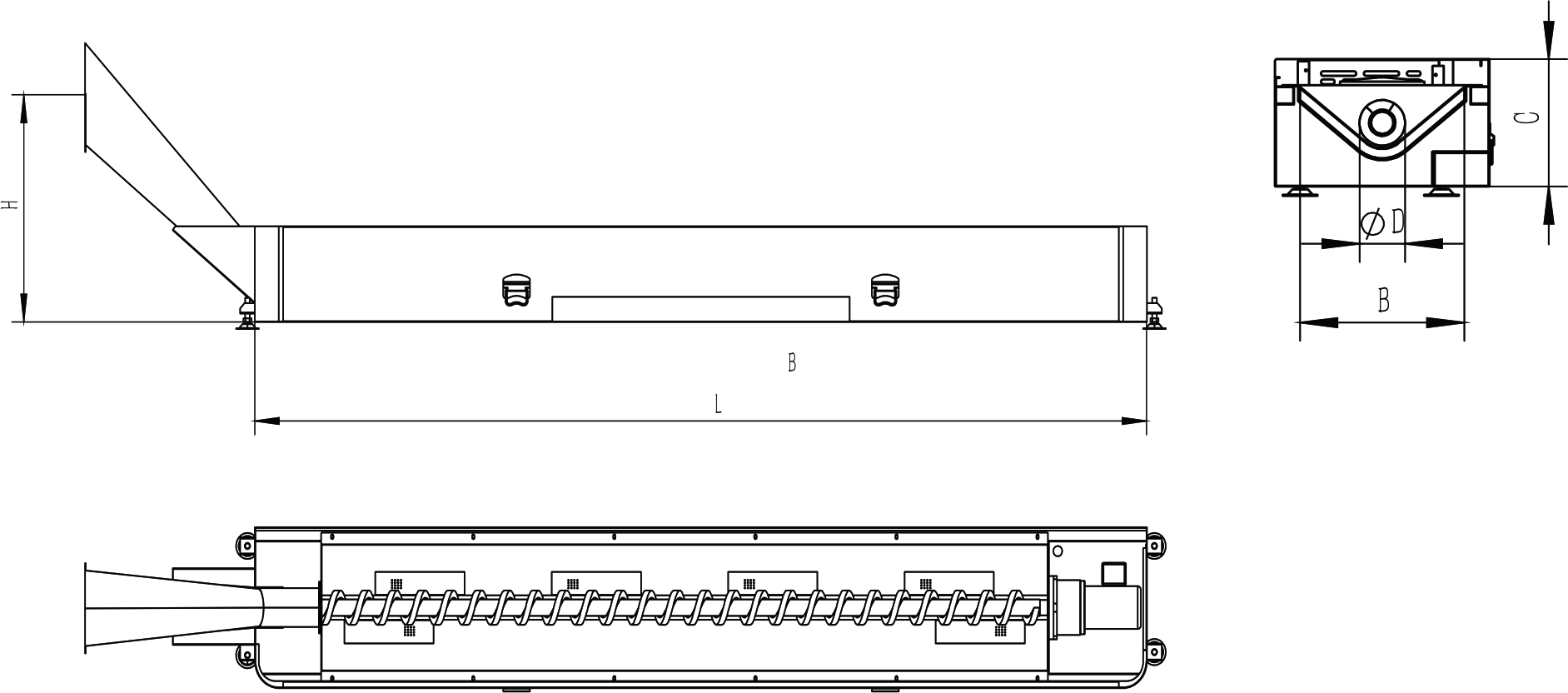

二、主要技术参数与选型--Main technical parameter and selection


型号

Model Number

LHBCD

排屑

Chip removalKg/min

电机功率P(kW)

Motor Power P(kw)

AK-LX-7030001000360

用户自定义

User-Defined

7220.1
AK-LX-1006000120048010060.1-7.5
AK-LX-120800014005201208
