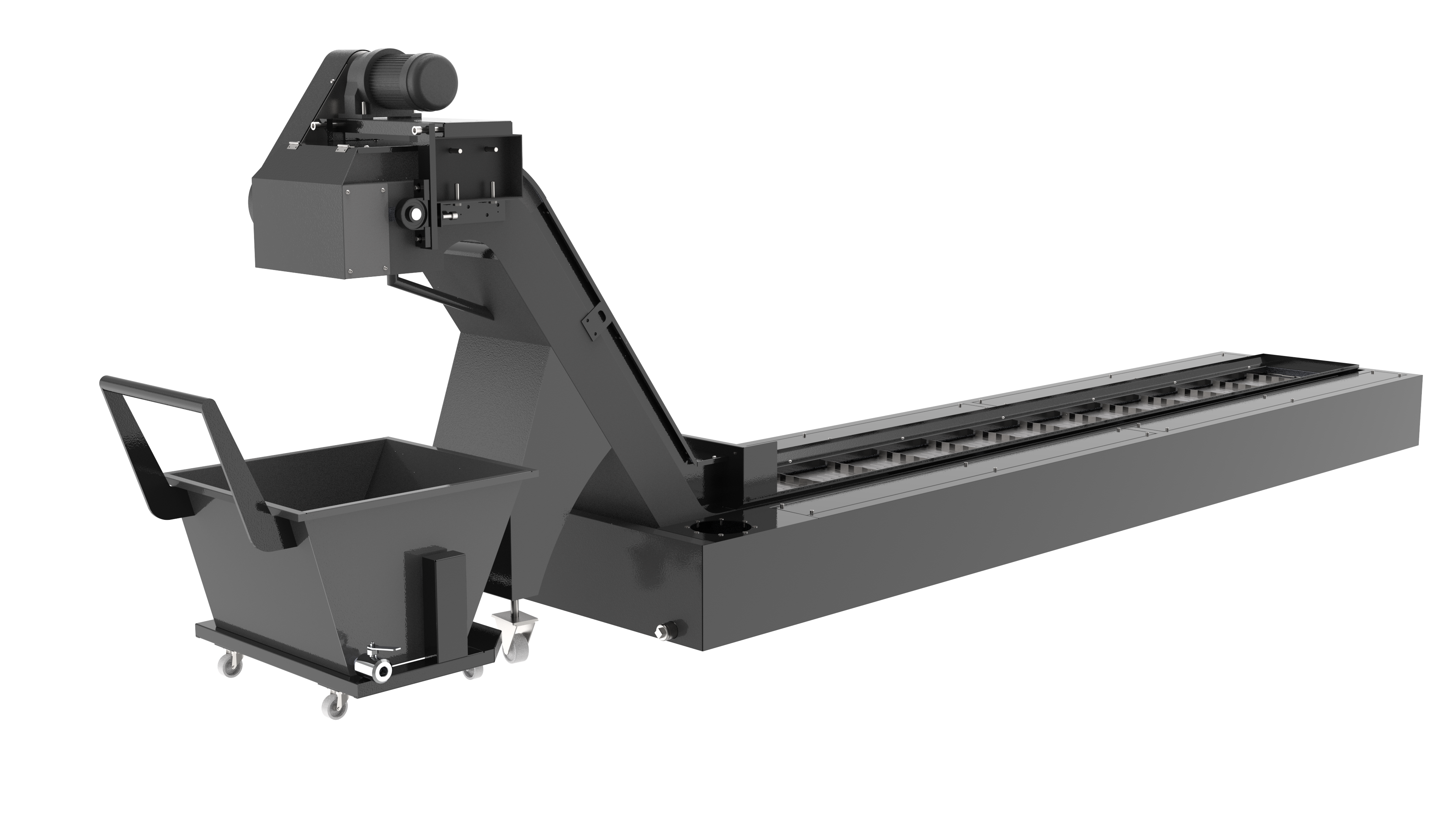

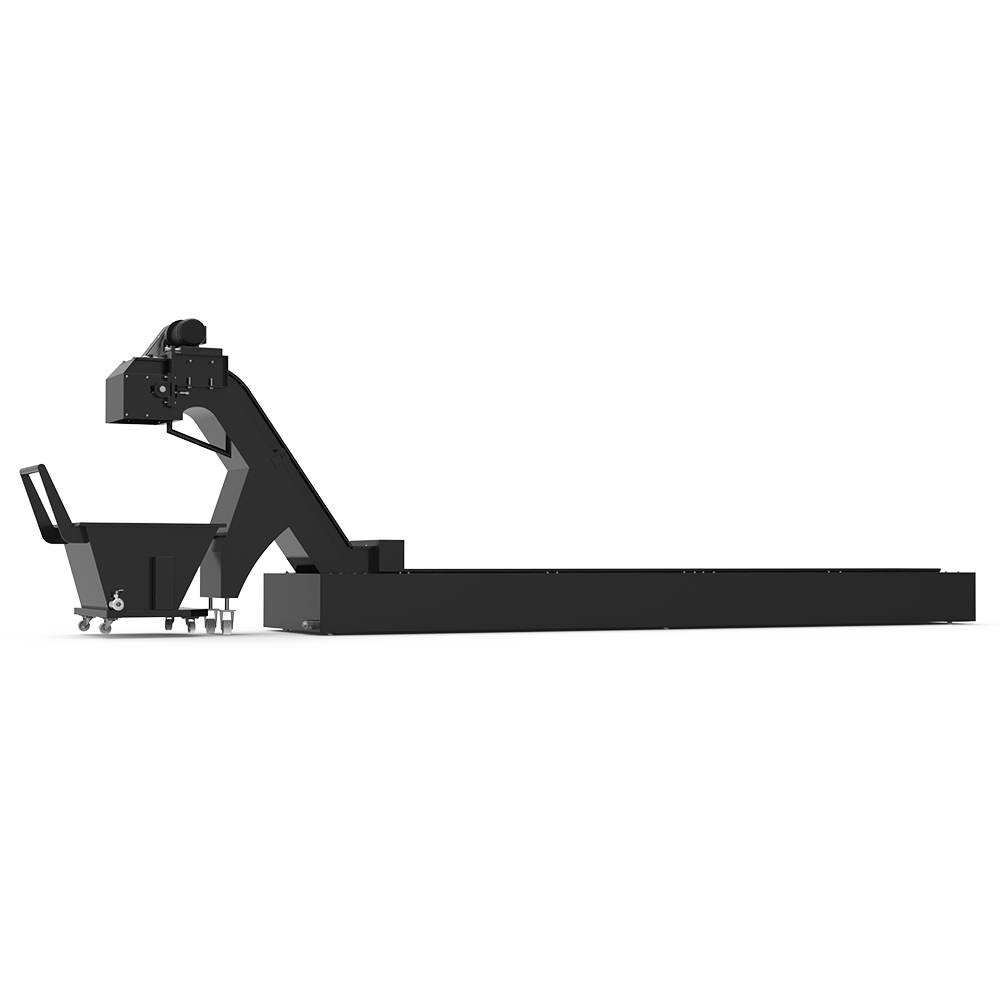

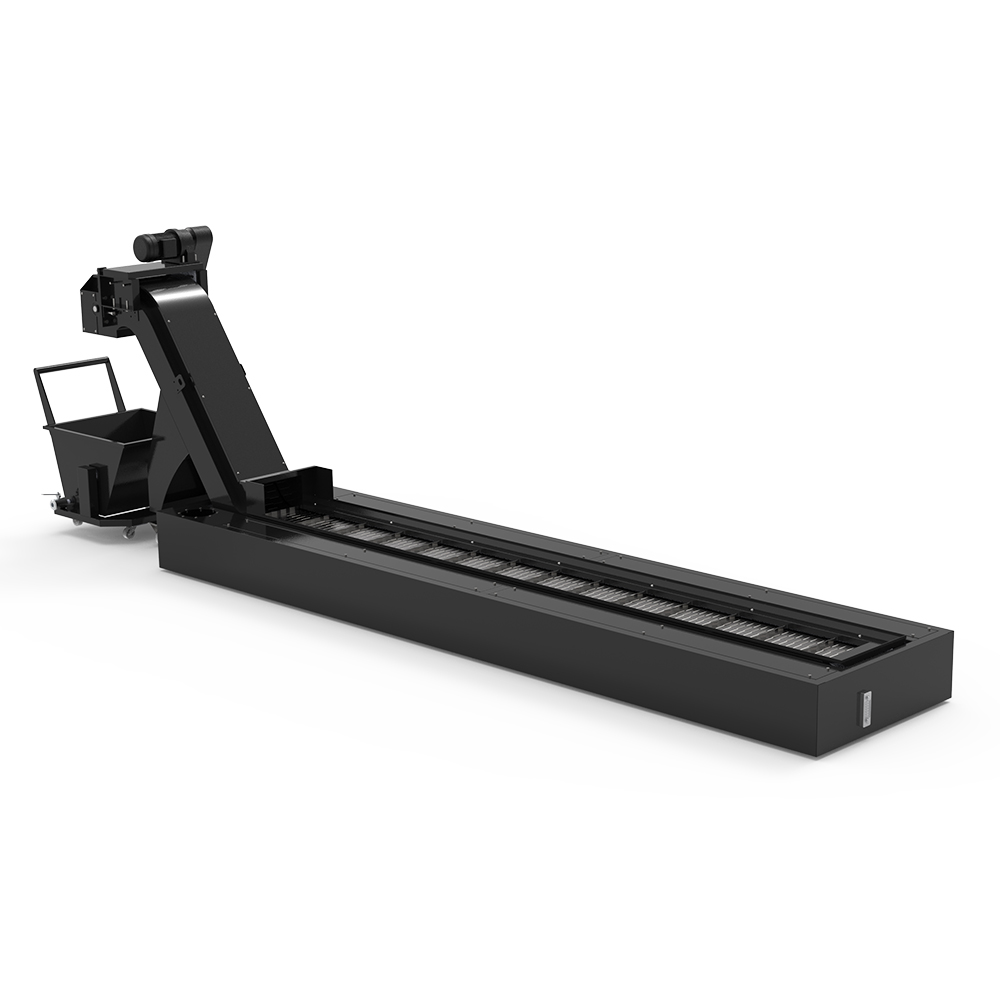

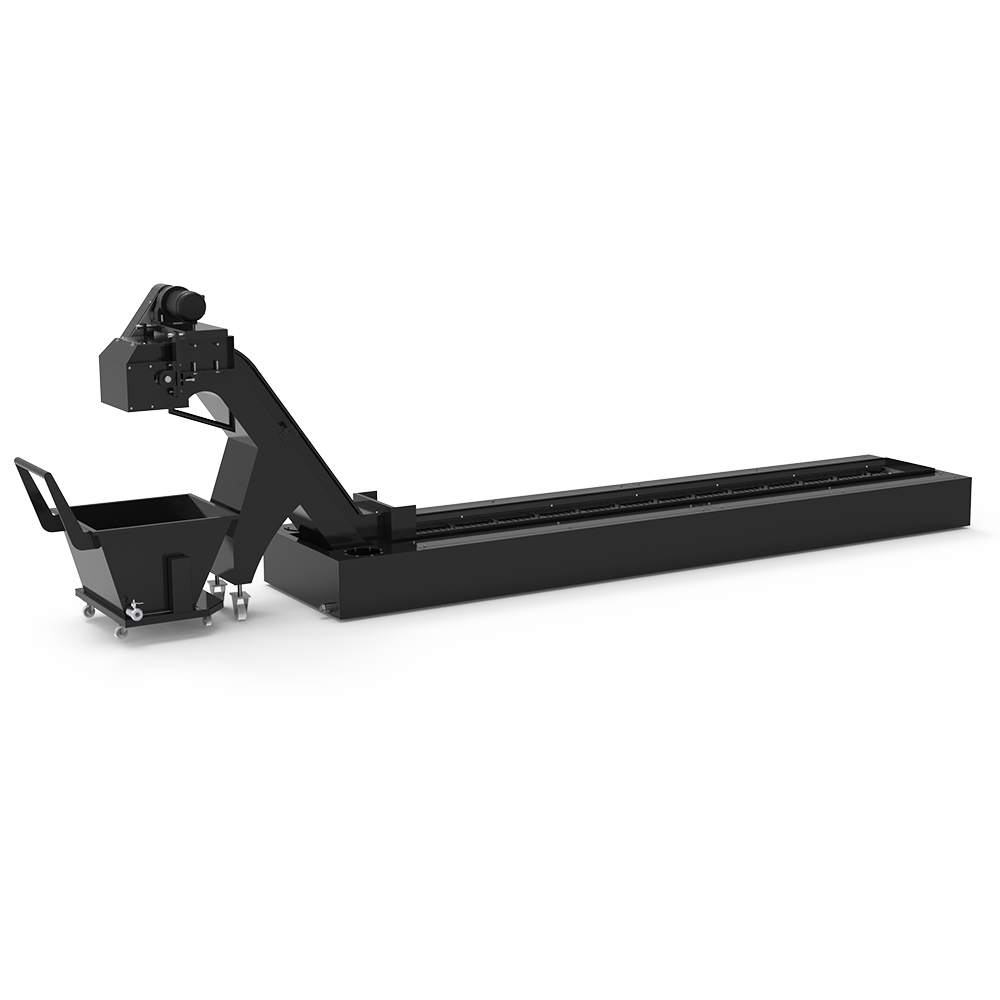

AK-LBZ系列 重型排屑机
AK-LBZ Heavy-duty Chip Conveyor

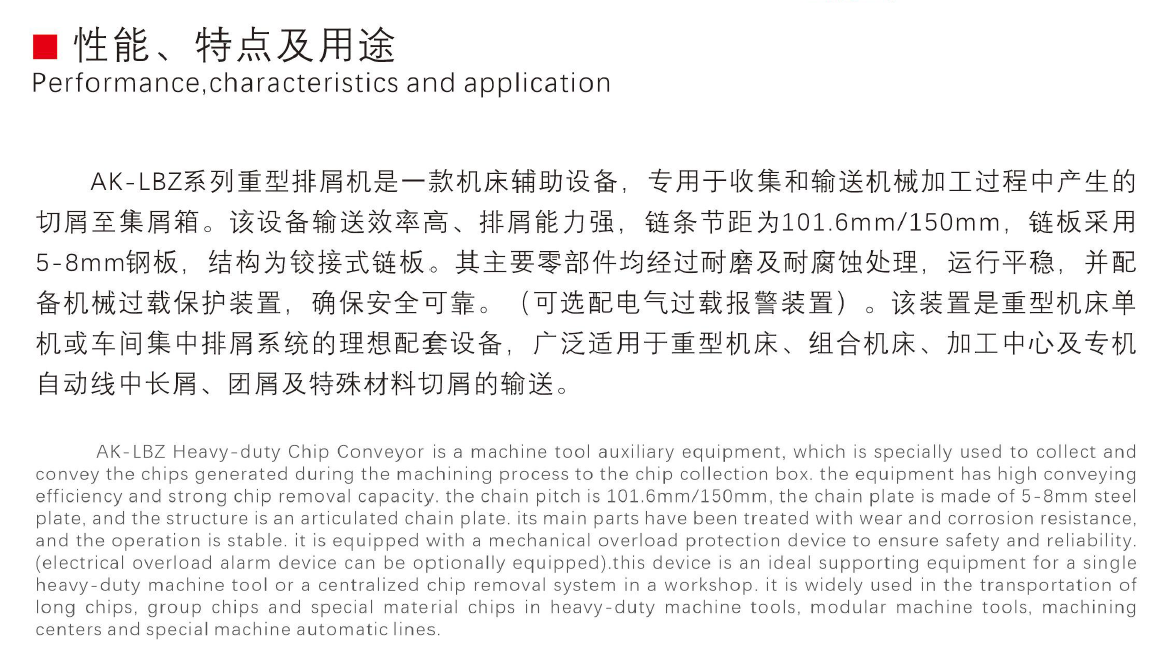

一、性能、特点及用途--Performance,characteristics and application

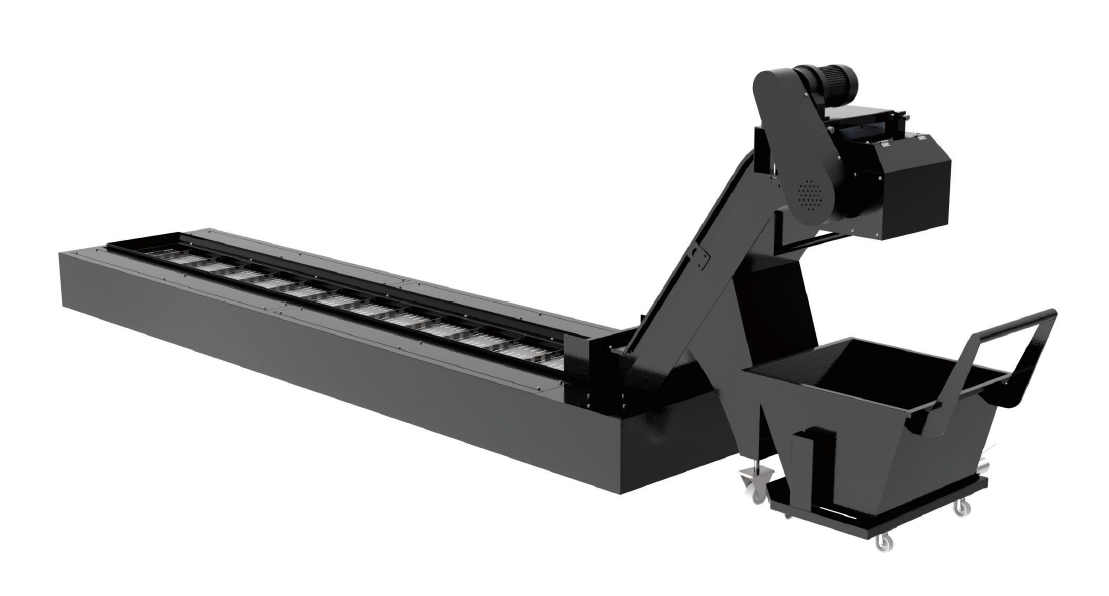

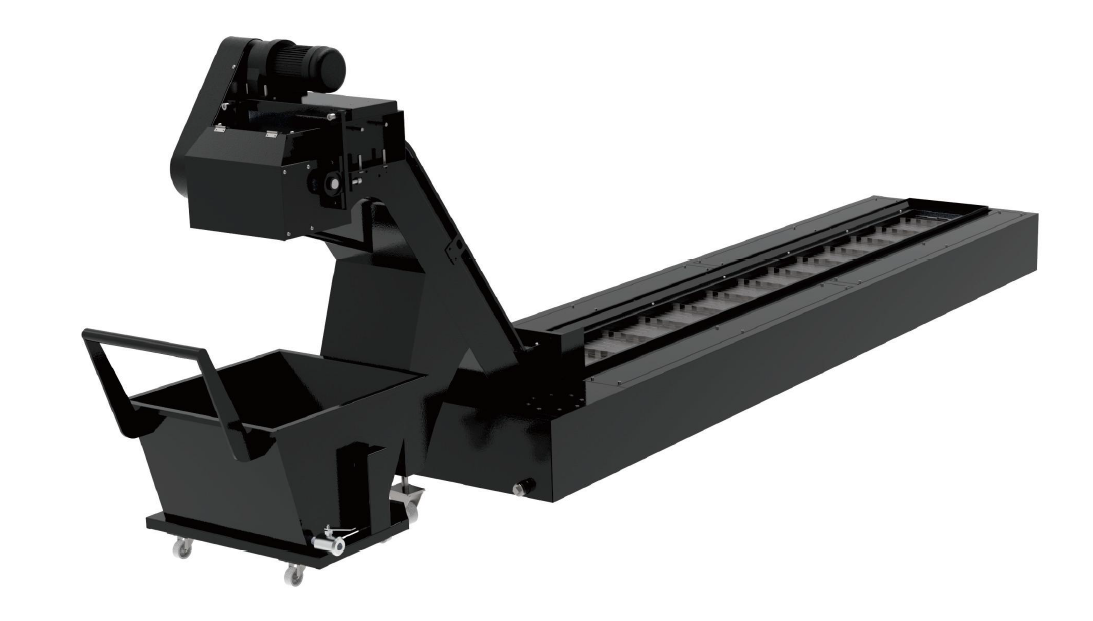

AK-LBZ系列重型排屑机是一款机床辅助设备，专用于收集和输送机械加工过程中产生的切屑至集屑箱。该设备输送效率高、排屑能力强，链条节距为101.6mm/150mm，链板采用5-8mm钢板，结构为铰接式链板。其主要零部件均经过耐磨及耐腐蚀处理，运行平稳，并配备机械过载保护装置，确保安全可靠。（可选配电气过载报警装置）。该装置是重型机床单机或车间集中排屑系统的理想配套设备，广泛适用于重型机床、组合机床、加工中心及专机自动线中长屑、团屑及特殊材料切屑的输送。
AK-LBZ Heavy-duty Chip Conveyor is a machine tool auxiliary equipment, which is specially used to collect and convey the chips generated during the machining process to the chip collection box. the equipment has high conveying efficiency and strong chip removal capacity. the chain pitch is 101.6mm/150mm, the chain plate is made of 5-8mm steel plate, and the structure is an articulated chain plate. its main parts have been treated with wear and corrosion resistance, and the operation is stable. it is equipped with a mechanical overload protection device to ensure safety and reliability. (electrical overload alarm device can be optionally equipped).this device is an ideal supporting equipment for a single heavy-duty machine tool or a centralized chip removal system in a workshop. it is widely used in the transportation of long chips, group chips and special material chips in heavy-duty machine tools, modular machine tools, machining centers and special machine automatic lines.
