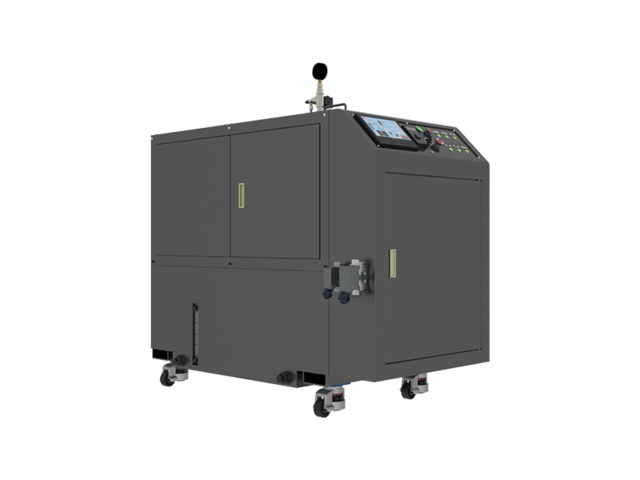

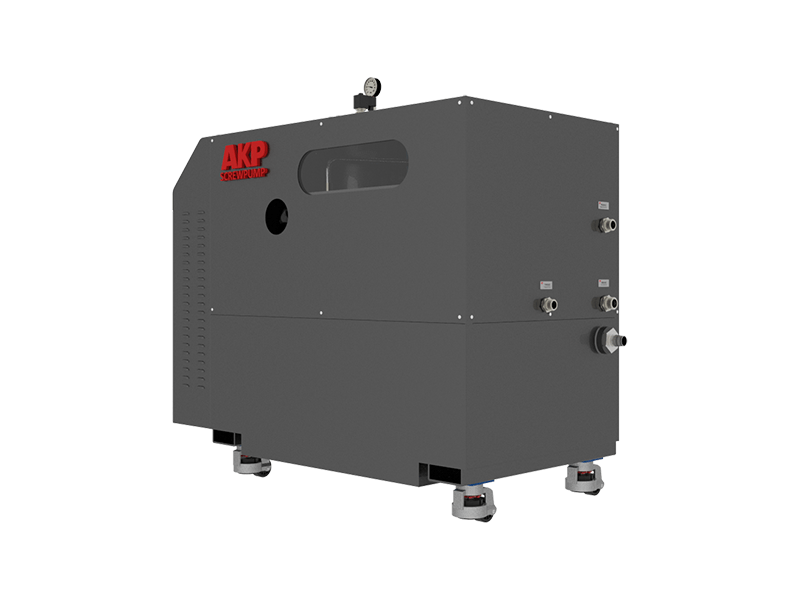

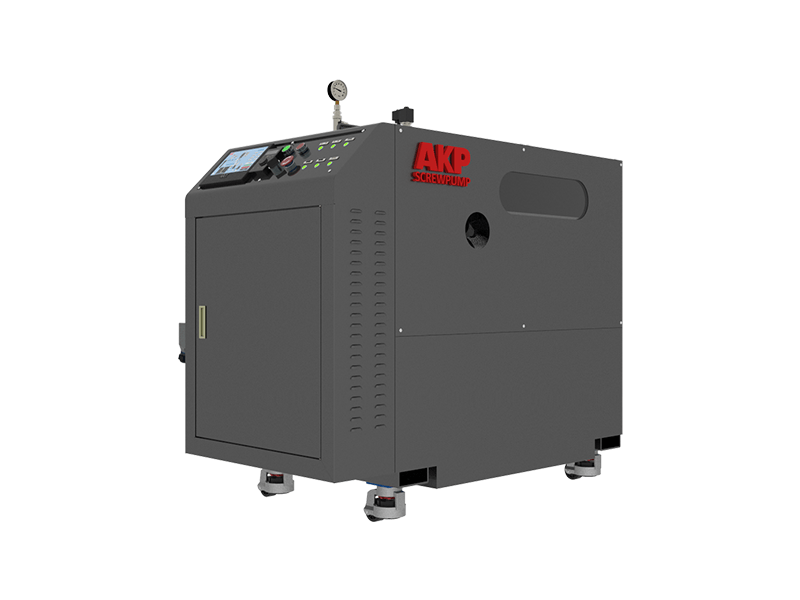

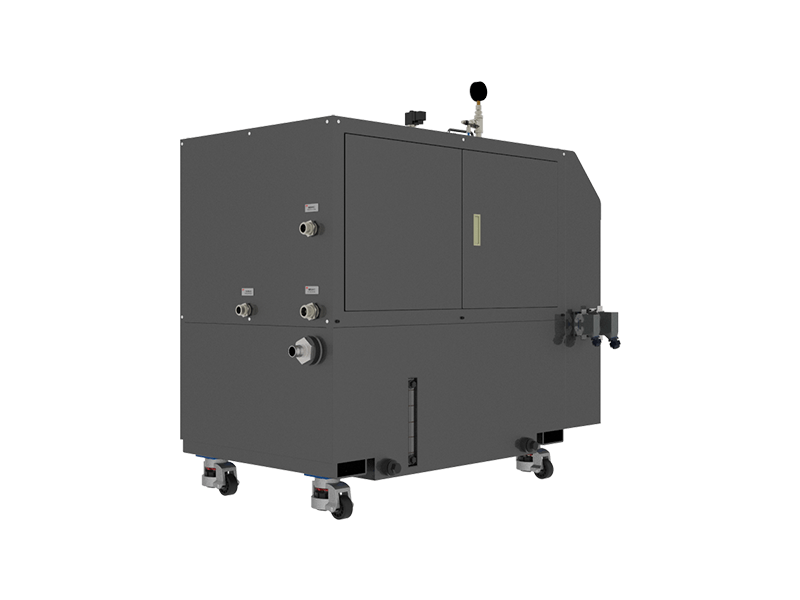

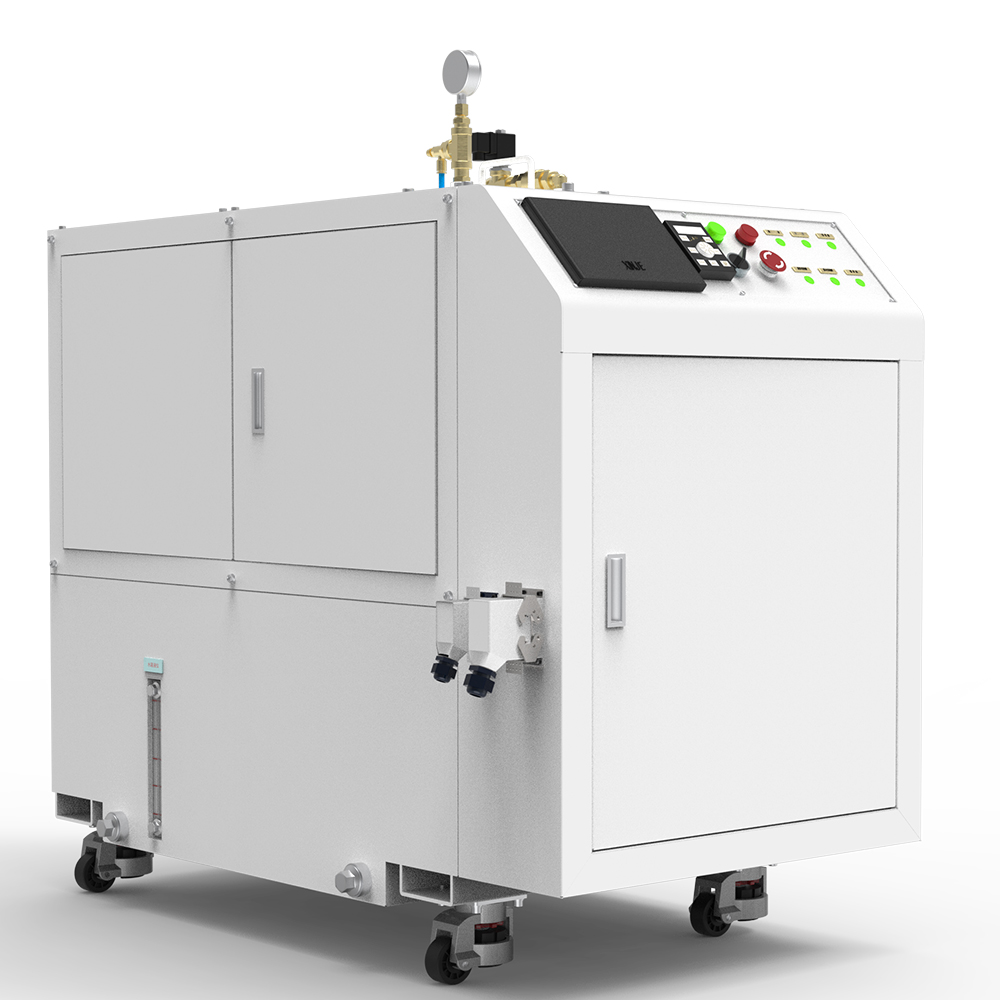

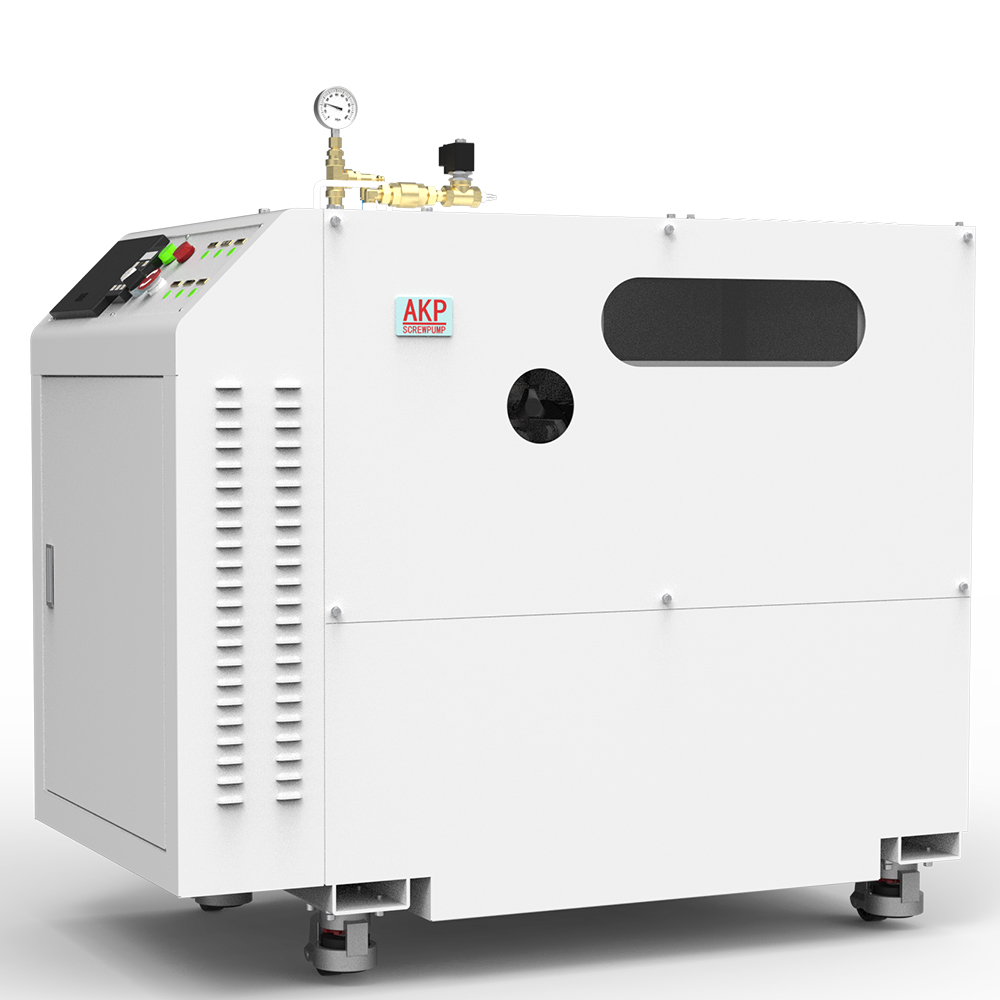

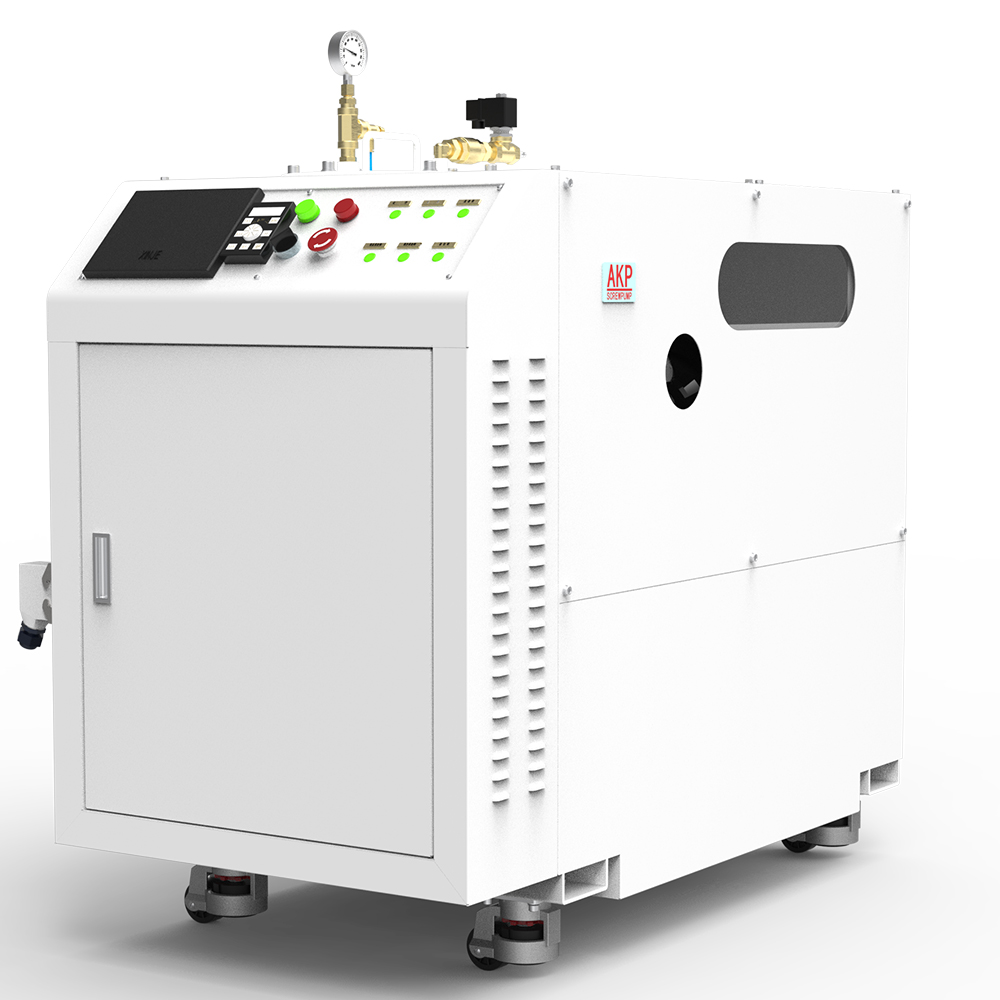

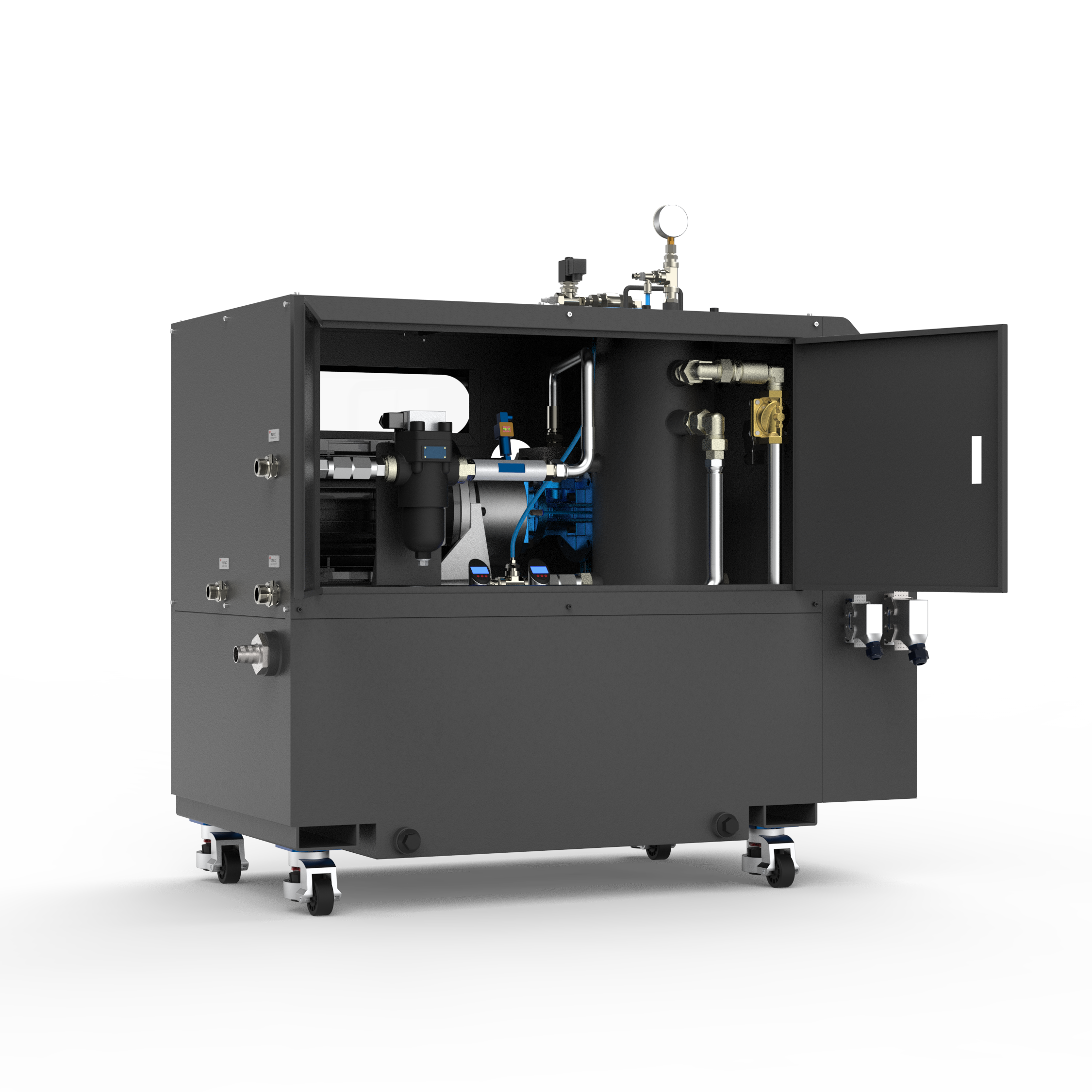

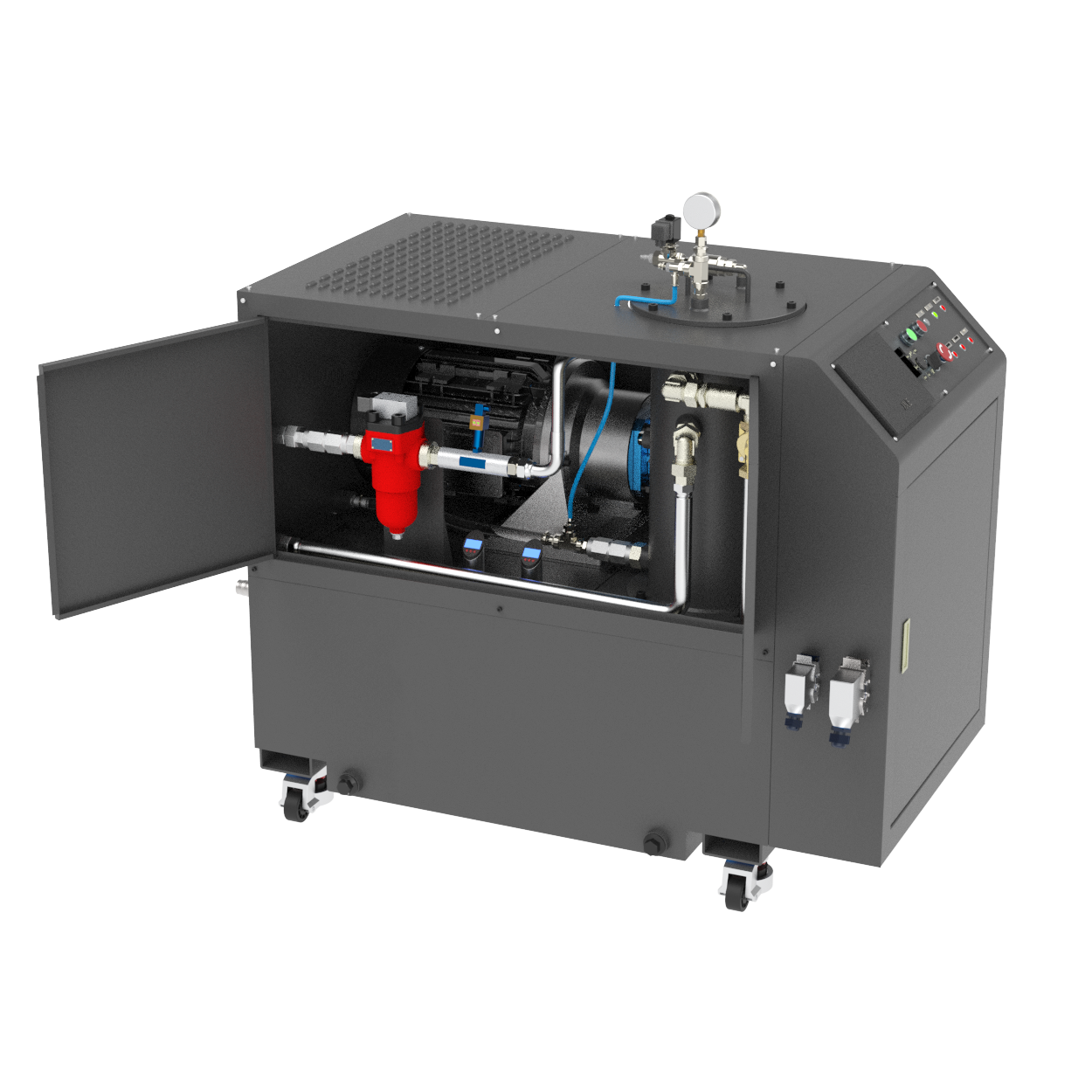

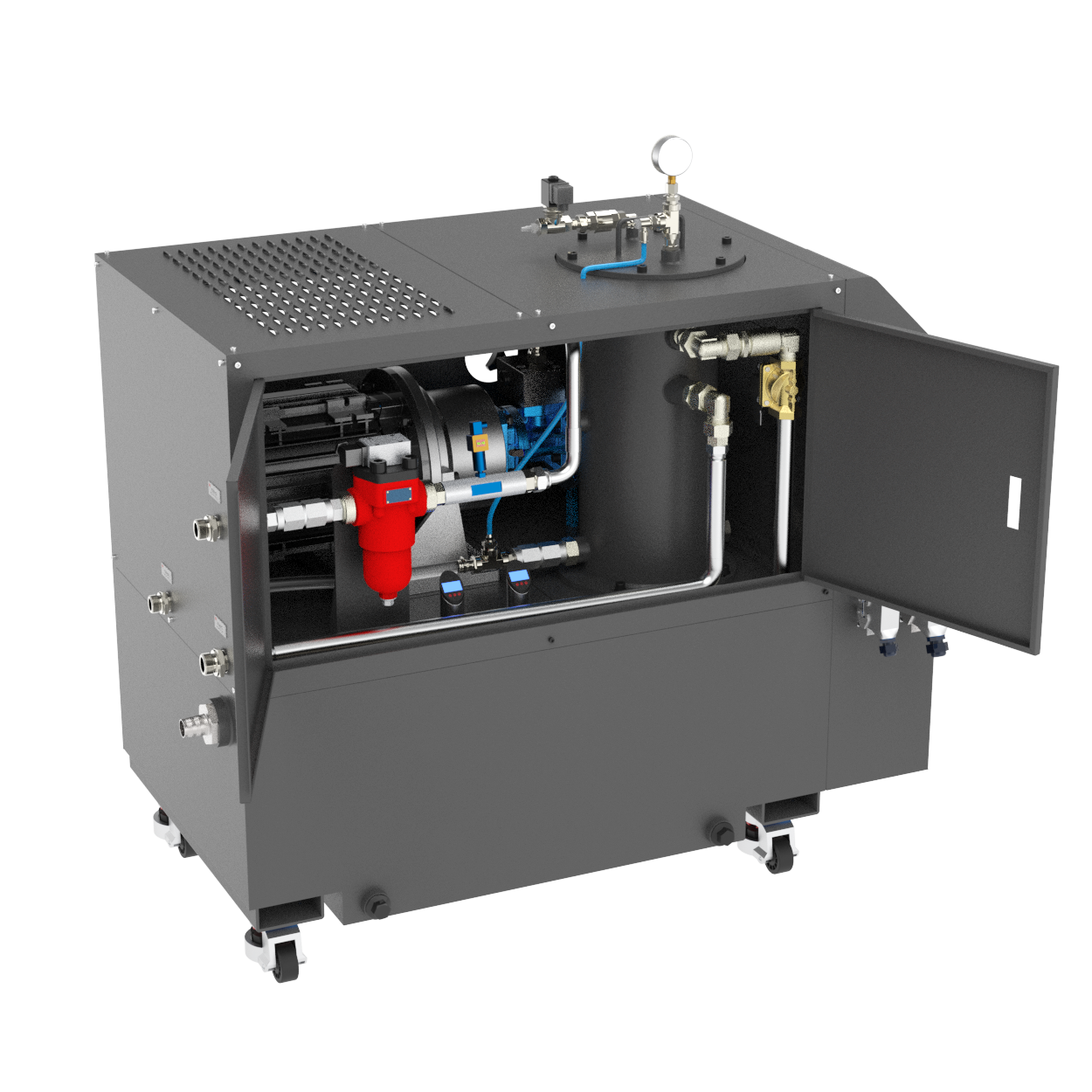

A3SS-XT4 人机互动式中心出水系统
A3SS-XT4 Human-machine Interactive High Pressure Coolant System

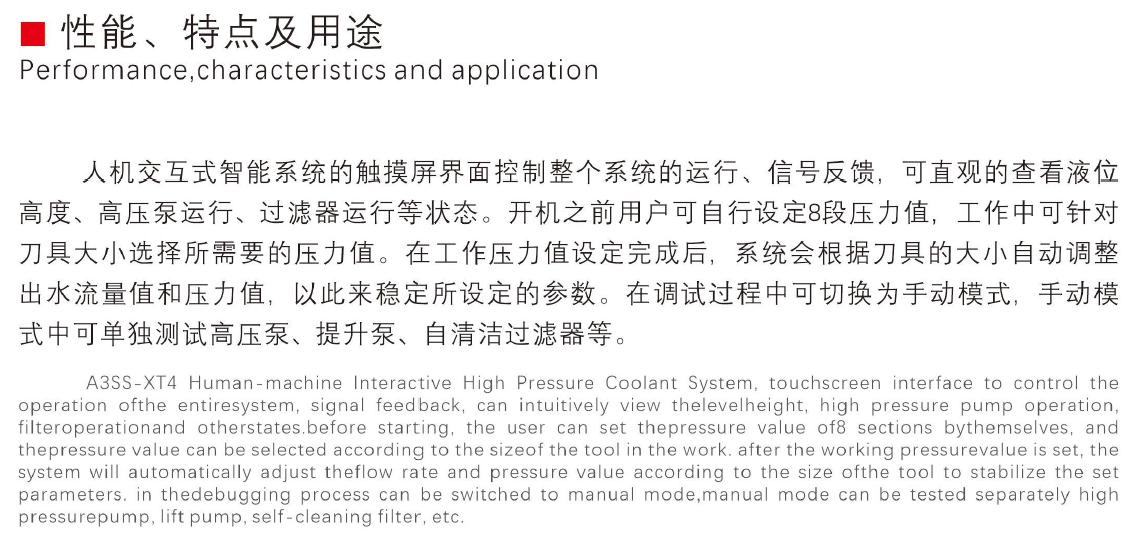

一、性能、特点及用途--Performance,characteristics and application

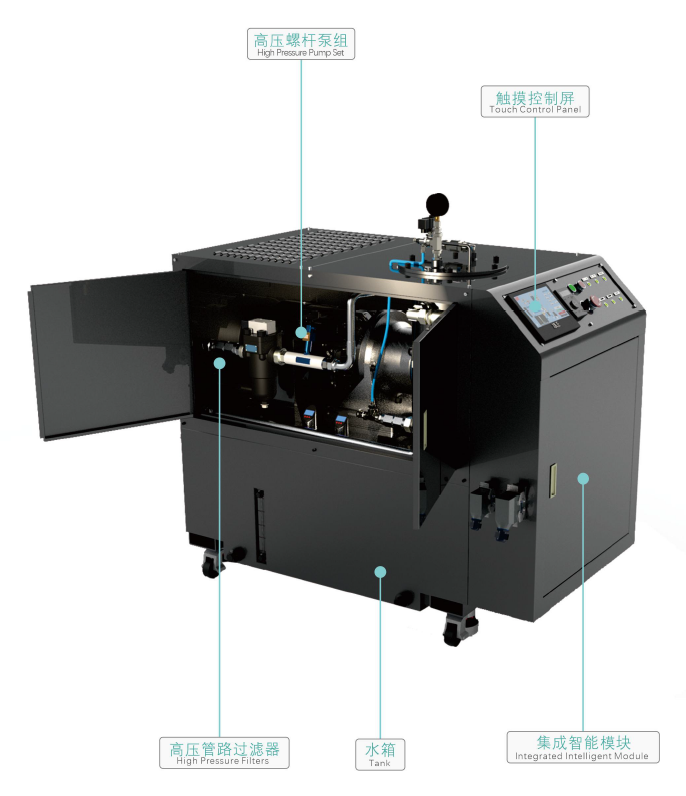

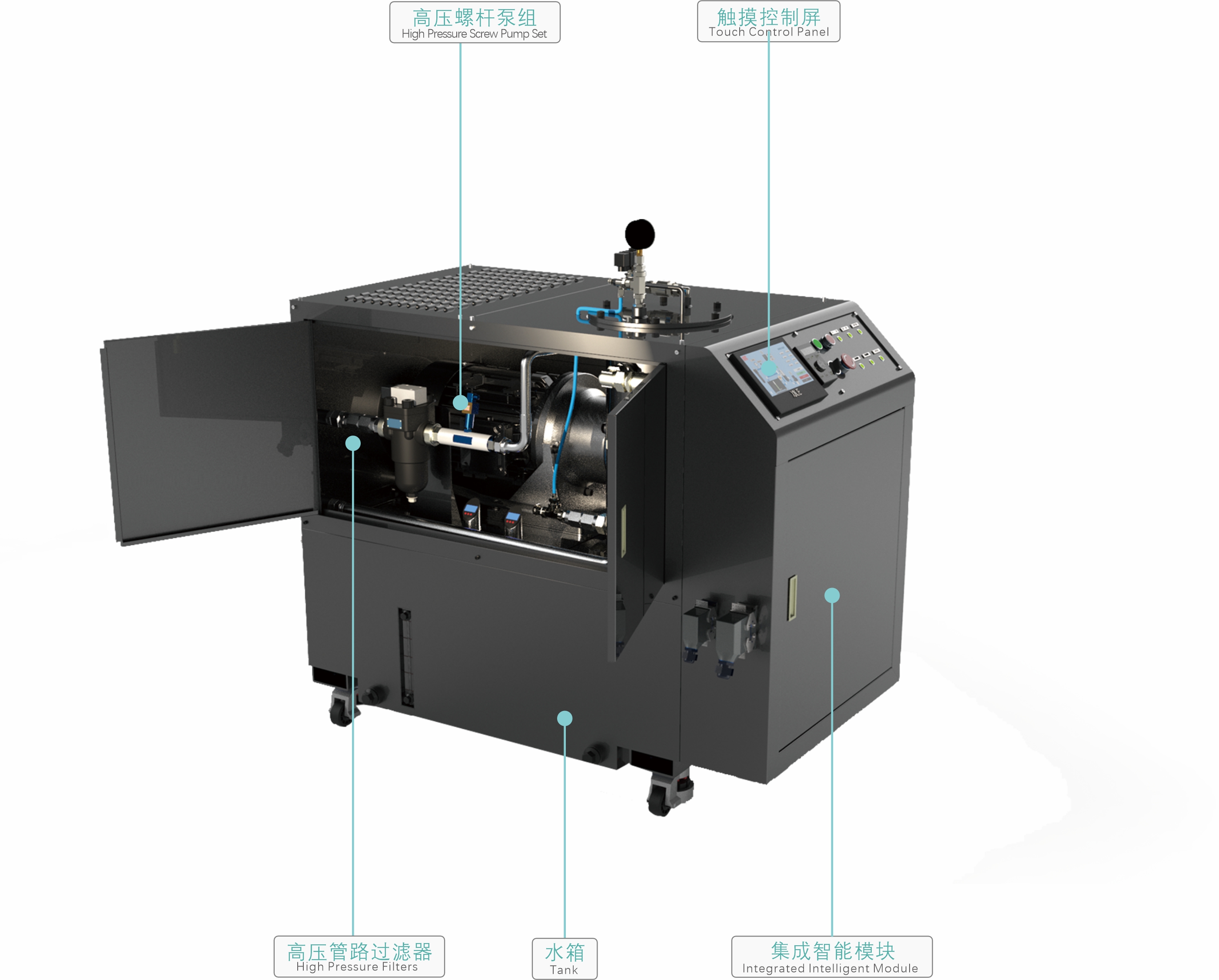

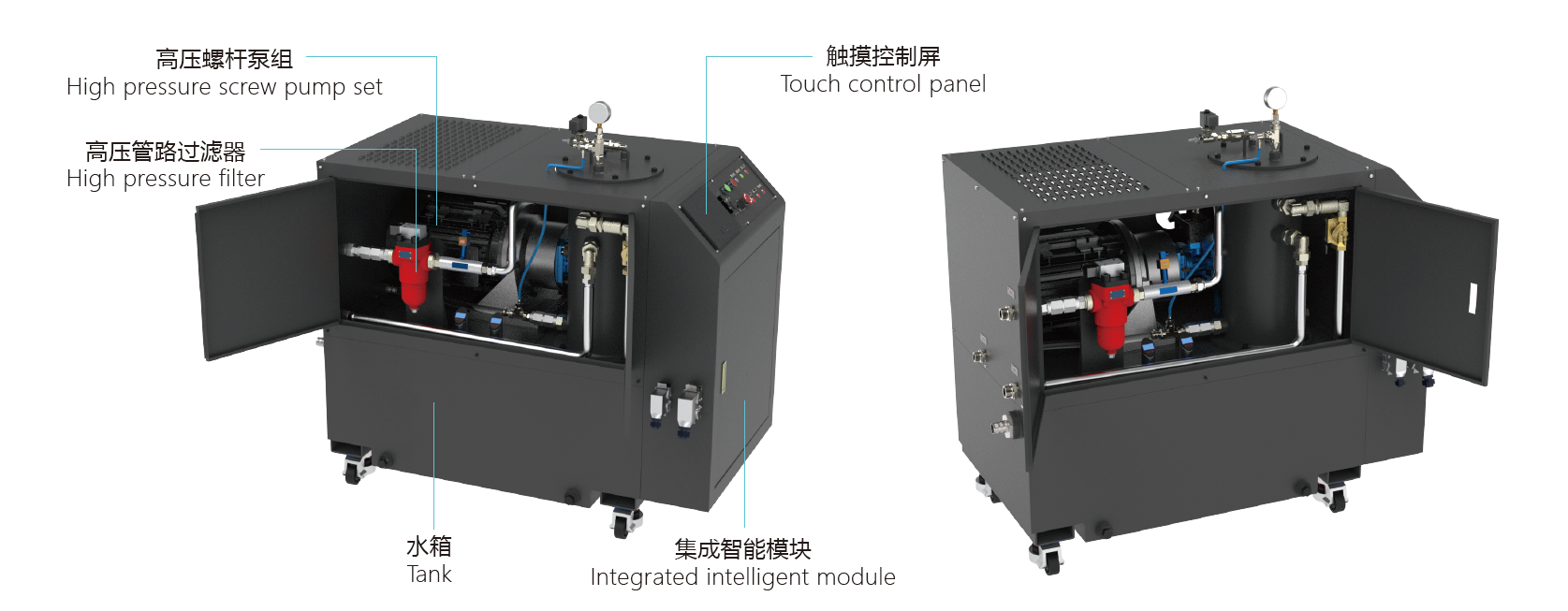

A3SS-XT4人机交互式智能系统的触摸屏界面控制整个系统的运行、信号反馈，可直观的查看液位高度、高压泵运行、过滤器运行等状态。开机之前用户可自行设定8段压力值，工作中可针对刀具大小选择所需要的压力值。在工作压力值设定完成后，系统会根据刀具的大小自动调整出水流量值和压力值，以此来稳定所设定的参数。在调试过程中可切换为手动模式，手动模式中可单独测试高压泵、提升泵、自清洁过滤器等。
A3SS-XT4 Human-machine Interactive High Pressure Coolant System, touchscreen interface to control the operation ofthe entiresystem, signal feedback, can intuitively view thelevelheight, high pressure pump operation, filteroperationand otherstates.before starting, the user can set thepressure value of8 sections bythemselves, and thepressure value can be selected according to the sizeof the tool in the work. after the working pressurevalue is set, the system will automatically adjust theflow rate and pressure value according to the size ofthe tool to stabilize the set parameters. in thedebugging process can be switched to manual mode,manual mode can be tested separately high pressurepump, lift pump, self-cleaning filter, etc.
二、典型应用场景--Typical application scenario
15MPa以内的智能分段控制，精准自适应控制压力和输出流量，超静音设计。提供机床同色系喷涂方案，兼容立式/卧式加工中心、车铣复合设备，钢件、铝件高效加工验证
Intelligent segmented control within 15MPa, precise adaptive control of pressure and output flow, ultra-quiet design. Provide machine tool same color spraying solution, compatible with vertical/horizontal machining centers, turning and milling equipment, and efficient processing verification of steel and aluminum parts.
